zorok (currently located in Henn 110A) is a server running RHEL-7.
Will be used as a file server (alpha replacement).
Installed SuperMICRO SMC2108 with battery backup, Firmware 2.120.243-1482

System Info:
BIOS    Hardware Info    bootup/MegaRAID Info    SuperMicro Drivers FTP site
DL100 Series User Guide   DL160 Software Manual    DL160 Installation Sheet    DL160 Maint+Service Guide
MegaRaid Storage Manager - /usr/local/sbin/MegaRAID ->/usr/local/MegaRAID Storage Manager/startupui.sh
MegaRAID_Profile_Summary.txt file
MegaRAID_monitorconfig.xml file
MegaRaid Guide    MegaCLI Guide






Hardware:

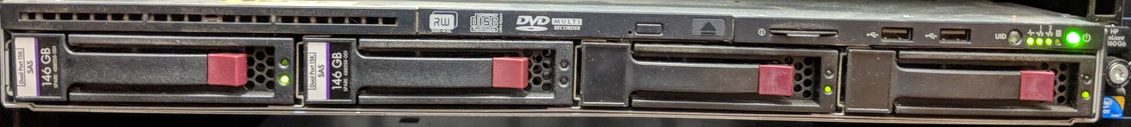

HP ProLiant DL160 G6




Serial Number:

MXQ01800WY




Processor:

Intel(R) Xeon(R) CPU E5520 @ 2.27GHz 2.27GHz




Installed Memory (RAM):

24 GB




System Type:

RHEL 7





Hard Drive:

146GB + 600GB in RAID-1






MAC 1 Address:

D8:D3:85:DB:64:81







MAC 2 Address:

D8:D3:85:DB:64:80



MegaRAID Storage Manager v14.11.01.00 Profile Summary - Generated on Thu Aug 13 10:12:07 PDT 2015
-------------------------------------------------------------------------------------------------
SERVER---
        Server IP:              127.0.0.1 (142.103.236.29)
        Server Name:            zorok.phas.ubc.ca
        OS name:                Linux
        OS Version:             3.10.0-229.el7.x86_64
        OS Architecture:        x86_64
        Application Version:    MegaRAID Storage Manager - v14.11.01.00

HARDWARE---
        Controller:             Supermicro SMC2108(Bus 7,Dev 0,Domain 0)
        Status:         Optimal
        Firmware Package Version:       12.12.0-0095
        Firmware Version:       2.120.243-1482
        BBU:            YES
        Enclosure(s):           1
        Drive(s):               4
        Virtual Drive(s):       2

BBU---
        BBU Type:               IBBU
        BBU Status:             Optimal

Enclosures---
        PRODUCT NAME    TYPE            STATUS
        Backplane               Sgpio           OK

Drives---
CONNECTOR   PRODUCT ID           VENDOR ID    STATE     DISK TYPE   CAPACITY      POWER STATE
Port 0 - 3  ST3600057SS          IBM-ESXS     Online    SAS         557.861 GB    On
Port 0 - 3  ST3600057SS          IBM-ESXS     Online    SAS         557.861 GB    On
Port 0 - 3  HGSTHUS724040AL      ATA          Online    SATA          3.638 TB    On
Port 0 - 3  HGSTHUS724040AL      ATA          Online    SATA          3.638 TB    On

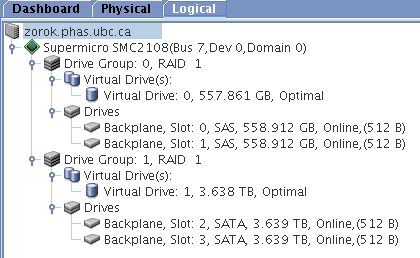

Virtual Drive(s):---
TARGET ID  NAME  CAPACITY     STATE     RAID LEVEL   MegaRAID RECOVERY   OPERATION PROGRESS
0          -     557.861 GB   Optimal   RAID  1      NO
1          -       3.638 TB   Optimal   RAID  1      NO                  Consistency Check

[root@zorok ~]# ps -ef | grep -i svn
00:00:00 /usr/bin/svnserve --daemon --pid-file=/run/svnserve/svnserve.pid --listen-port=3690 -r /home/svn


[root@zorok ~]# netstat -tulp | egrep "PID|svn"
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:svn             0.0.0.0:*               LISTEN      27959/svnserve


[root@zorok ~]# systemctl status svnserve
● svnserve.service - Subversion protocol daemon
   Loaded: loaded (/usr/lib/systemd/system/svnserve.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2016-02-19 08:32:58 PST; 8s ago
  Process: 27942 ExecStart=/usr/bin/svnserve --daemon --pid-file=/run/svnserve/svnserve.pid $OPTIONS (code=exited, status=0/SUCCESS)
 Main PID: 27959 (svnserve)
   CGroup: /system.slice/svnserve.service
           └─27959 /usr/bin/svnserve --daemon --pid-file=/run/svnserve/svnserve.pid --listen-port=3...

Feb 19 08:32:58 zorok.phas.ubc.ca systemd[1]: Starting Subversion protocol daemon...
Feb 19 08:32:58 zorok.phas.ubc.ca svnserve[27942]: DIGEST-MD5 common mech free
Feb 19 08:32:58 zorok.phas.ubc.ca systemd[1]: Started Subversion protocol daemon.


[root@zorok ~]# rpm -q --whatprovides /usr/bin/svnserve
subversion-1.7.14-10.el7.x86_64


[root@zorok ~]# ps -ef | grep -i svn
root     27959     1  0 08:32 ?        00:00:00 /usr/bin/svnserve --daemon --pid-file=/run/svnserve/svnserve.pid --listen-port=3690 -r /home/svn


 [root@zorok ~]# svn ls svn://zorok.phas.ubc.ca/rap
branches/
tags/
trunk/


 [root@zorok ~]# svnadmin verify /home/svn/rap
* Verified revision 0.
* Verified revision 1.
* Verified revision 2.
* Verified revision 3.


SuperMicro HBA battery failed

xyz
